เมนบอร์ด Dell Vostro 3900 แท้ ตรงรุ่น Mainboard Dell Vostro 3900 แท้ รับประกันศูนย์ Dell Thailand

DPN : T1D10
SKU : 2903
อะไหล่แท้ ตรงรุ่น ประกันศูนย์ Dell Thailand 90 Day

รับสั่ง อะไหล่โน๊ตบุ๊ค Dell ทุกรุ่น ราคา ปลีก ส่ง
ขาย อะไหล่ Dell Vostro 3900
ขอใบเสนอราคาได้ที่ >>> dell.rannotebook@gmail.com

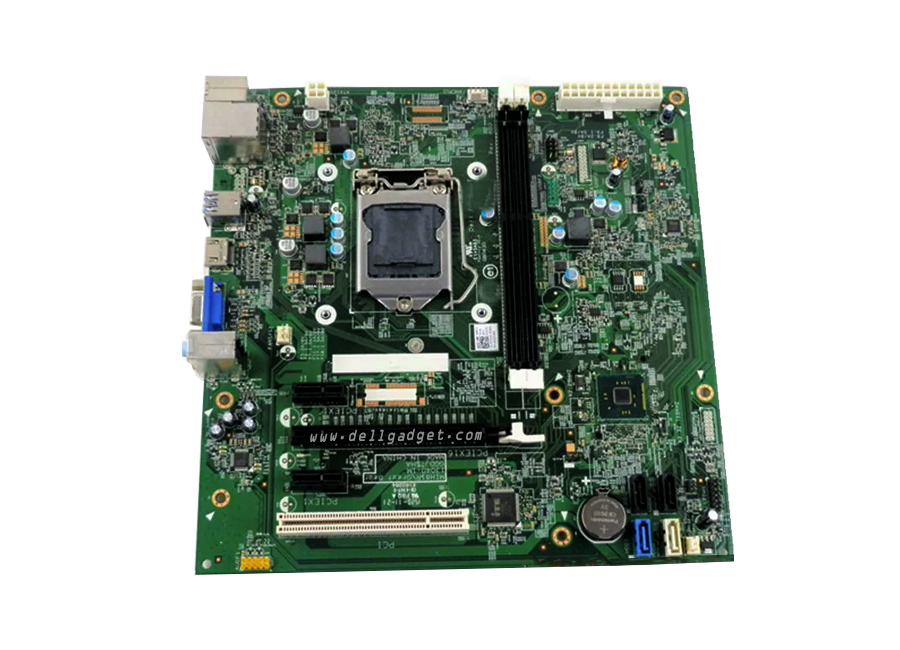

System Board Components
1. PCI connector                                 2. PCIe x1 connector
3. PCIe x16 connector                         4. PCIe x1 connector
5. P2 power connector                         6. processor socket
7. CPU fan connector                           8. memory connectors
9. P1 power connector                        10. card reader module connector
11. real-time clock reset jumper           12. password reset jumper
13. front USB connector                      14. SATA connectors
15. front LED connector                      16. system fan connector
17. SATA connectors                           18. coin-cell battery
19. front audio connector

Specifications
• Intel Celeron
• Intel Pentium Dual Core
• Intel Dual Core i3 (4th Generation)
• Intel Dual Core i5 (4th Generation)
• Intel Dual Core i7 (4th Generation)

L3 cache
Up to 8 MB

Memory module connector
two DIMM slots

Memory module capacity
2 GB, 4 GB, 6 GB, 8 GB, and 16 GB

Type
1600 MHz DDR3 (Non-ECC)

Minimum memory
2 GB
16 GB

Integrated
Intel HD 4600 Graphics

Discrete
PCI Express x16 graphics card
• Nvidia GT 705
• Nvidia GTX 745

Integrated video memory
Shared system memory

Integrated
Integrated 5.1 high-definition audio

Integrated
Realtek 10/100/1000 Mbps Ethernet

Chipset
Intel H81

BIOS chip (NVRAM)
8M SPI Flash ROM

PCI Express
PCIe 2.0 at speeds upto 5.0 GT/s

SATA
0,1 SATA Gen 3 at 6 GB/s and 2,3 SATA Gen 2 at 3 GB/s

USB
80 Mbps

PCIe x16
one half-height card
one full height card

PCIe x1
up to two half-height cards
up to two full height cards

PCI
one half height card
one full height card

Externally accessible:
5.25 inch drive bays
one

Internally accessible:
3.5 inch drive bays
one

Back panel
three connectors

Front Panel
two front-panel connectors for headphone and microphone

Network
one RJ45 connector

Front panel
• two USB 2.0 connectors

Back panel
four USB 2.0 connectors, two USB 3.0 connectors PS 2 used to connect a PS 2 compatible keyboard or mouse

Video
• one 15-hole VGA connector
• one 19-pin HDMI connector
