เมนบอร์ด Dell Precision Tower 3620 แท้ ตรงรุ่น Mainboard Dell Precision Tower 3620 แท้ รับประกันศูนย์ Dell Thailand

DPN : MWYPT
SKU : 7986

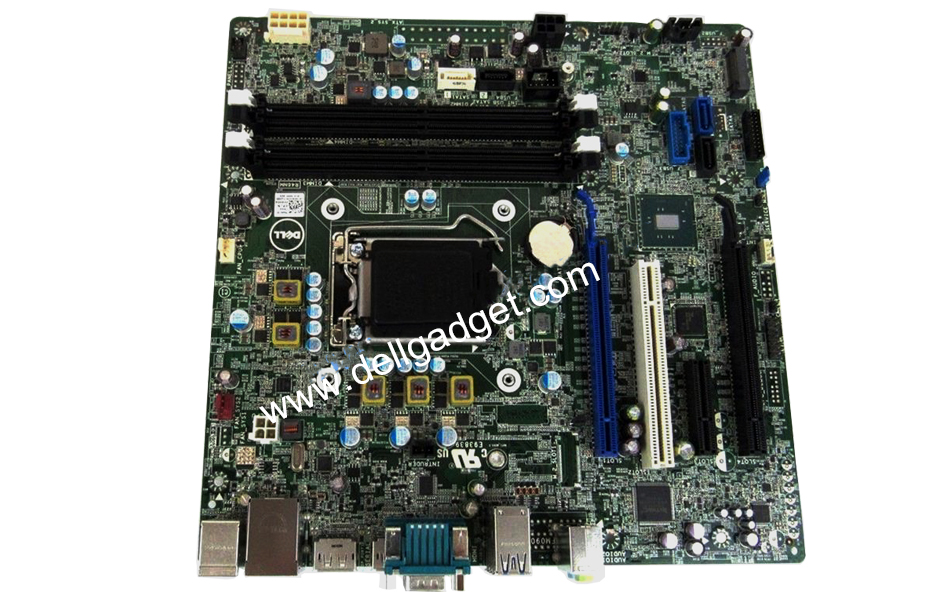

เมนบอร์ด Dell Precision Tower 3620
อะไหล่ แท้ ตรงรุ่น ตรงสเปก รับประกันตรง กับ ศูนย์ Dell Thailand 90 Day

สเปก เมนบอร์ด Dell Precision Tower 3620
Figure 1. Components of the system board
1. PCI express x16 slot (wired as x4)
2. PCI express x4 slot
3. PCI slot
4. PCI express x16 Gen 3 slot
5. line-in connector
6. USB 3.0 connector
7. HDMI connector
8. serial port connector
9. 2 x DisplayPort connector
10. USB 2.0 with network connector
11. keyboard/mouse connector
12. intrusion switch connector
13. P2 power connector
14. system fan connector
15. CPU socket
16. CPU fan connector
17. coin cell battery
18. memory slot
19. front power switch connector
20. 8-pin power connector
21. SATA 1 connector
22. SATA 2 connector
23. internal USB connector
24. hard drive and optical drive power cable connector
25. OS debug header for debug
26. USB 3.0 connector
27. Thunderbolt header
28. M.2 SSD slot
29. SATA 0 connector
30. front I/O connector
31. SATA 3 connector
32. password reset jumper
33. service Mode jumper connector
34. speaker connector
35. CMCLR jumper
36. CLINK header
37. LPC Debug header for debug

Legacy Boot
• ST2000DM001–1ER164
• CD/DVD/CD-RW Drive
• Onboard NIC

UEFI Boot  :  Windows Boot Manager
Other options
• BIOS Setup
• BIOS Flash Update
• Diagnostics
• Intel (R) Management Engine BIOS Extension (MEBx)
• Change Boot Mode Settings
The boot sequence screen also displays the option to access the System Setup screen.

System Information : This section lists the primary hardware features of your computer
• System Information
• Memory Configuration
• PCI Information
• Processor Information
• Device Information

Boot Sequence : Allows you to change the order in which the computer attempts to find an operating system.
• Diskette Drive
• USB Storage Device
• CD/DVD/CD-RW Drive
• Onboard NIC
• Internal HDD

Boot List Options : Allows you to change the boot list option
• Legacy
• UEFI

Advanced Boot Options  : Allows you to Enable Legacy Option ROMs
• Enable Legacy Option ROMs (Default: not enabled)

Date/Time : Allows you to set the date and time. The changes to the system date and time takes effect immediately.

Integrated NIC : Allows you to configure the integrated network controller. The options are:
• Enable UEFI Network Stack
• Disabled
• Enabled
• Enabled w/PXE (Default)
• Enabled w/Cloud Desktop

Serial Port : Identifies and defines the serial port settings. You can set the serial port to:
• Disabled
• COM1 (Default)
• COM2
• COM3
• COM4

SATA Operation : Allows you to configure the internal SATA hard-drive controller. The options are:
• Disabled
• AHCI
• RAID On (Default)

Drives : Allows you to configure the SATA drives on board. The options are:
• SATA-0
• SATA-1
• SATA-2
• M.2 PCIe SSD-0
Default Setting: All drives are enabled.

SMART Reporting : This field controls if the hard drive errors for the integrated drives are reported during system startup. This technology is part of the SMART (Self Monitoring Analysis and Reporting Technology) specification.
• Enable SMART Reporting - This option is disabled by default.

USB Configuration : Allows you to enable or disable the USB configuration. The options are:
• Enable Boot Support
• Enable Front USB Ports
• Enable rear USB Ports

Front USB Configuration : Allows you to enable or disable the Front USB configuration. The options are:
• Front Port 1
• Front Port 2
• Front Port 3
• Front Port 4

Rear USB Configuration  :  Allows you to enable or disable the rear USB configuration. The options are:
• Rear Port 1
• Rear Port 2
• Rear Port 3
• Rear Port 4
• Rear Port 5
• Rear Port 6

Thunderbolt  :  Allows you to enable or disable Thunderbolt device support capability. The options are:
• Enabled (Default)
• No Security
• User Configuration
• Secure Connect
• Display Port Only

USB PowerShare : Allows you to enable or disable USB PowerShare.
Enable USB PowerShare -This option is disabled by default.

Audio : Allows you enable or disable the audio feature. Enable Audio (Default)
• Enable Microphone
• Enable Internal Speaker

Miscellaneous devices  :  Allows you to enable or disable various on board devices.
• Enable Media Card (Default)
• Disable Media Card
